A guide to cooktop dimensions
A cooktop can help you cook the way you want in your kitchen with a layout that makes sense for you. Get the functionality of a stovetop without the bulk of an oven for more installation flexibility. Whether you’re replacing an old cooktop or switching up your kitchen layout with a remodel, it’s important to understand how various cooktop sizes will affect your plans.
This guide can help you sort through the different cooktop sizes and learn more about how to measure for a cooktop so you get the right fit the first time.
What are common cooktop sizes?
Standard cooktop sizes often correspond to common cabinet widths: 30" and 36". But, cooktops can range from a slim 15"-24", to larger 45" and 48" wide models, depending on the number and size of burners, amount of trim and more.
There are also choices in the number of burners—like these 2-burner, 4-burner or 5-burner cooktop options from Whirlpool brand. When selecting your size, make sure to allow for countertop space on either side.
Whirlpool brand offers a range of cooktop sizes to fit everything from small, apartment kitchens to large islands the whole family can gather around.
What is the difference between cooktop dimensions and cooktop cutout dimensions?
The appliance dimensions of a cooktop are not the same as the cutout dimensions needed to install it. The appliance dimensions, shown in the above image, are the length and width of the cooktop surface that sits above your countertop.
The cutout dimensions are the length and width of the opening in the countertop needed for installation. Cutout dimensions are always smaller than the appliance dimensions because cooktop surfaces extend beyond the cutout below for a more seamless integration with your countertops.
It’s important to note that cutout dimensions can vary from model to model, even among cooktops with the same appliance dimensions. For example, a 30" cooktop model from one brand can have a cutout dimension that differs from another 30" cooktop model. Although this variation is usually no more than 1½", it’s enough to affect whether a new model will fit an existing cutout. That’s why it’s important to know both dimensions when shopping for a new cooktop, even when you’re replacing an old cooktop with the same surface dimensions.
How to measure cooktop size
If you just want to replace your existing cooktop without renovations, measure both the existing appliance surface and the size of the cutout to find a match. If you’re completing a kitchen renovation, check the appliance dimensions and the size of the cutout needed to make sure you have the right countertop space to add the cooktop you want.
Measuring to replace an existing cooktop
If you’re getting ready to replace your old cooktop with a new model, understanding how to measure your current space against the dimensions of your new cooktop can help ensure a perfect fit. Use the guide below to learn how to measure for a replacement cooktop.

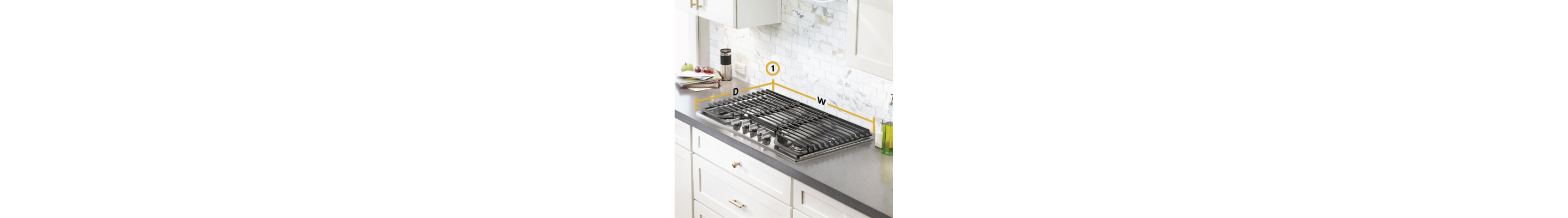

Step 1: Measure your existing cooktop
First, uninstall your cooktop to make sure you get the most accurate measurements.
Width: Measure the width of your existing cooktop by running a tape measure from the right outer edge to the left outer edge of the cooktop surface.
Depth: Measure the front-to-back depth of the cooktop surface, including the control panel.

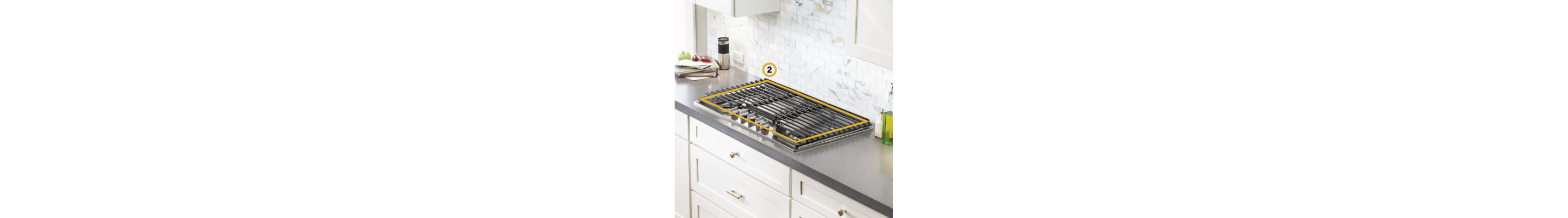

Step 2: Measure the cooktop cutout
Width: Measure the width of the cutout from the right edge to the left edge using measuring tape. To ensure accuracy, take a measurement near the front of the cutout and another measurement near the back of the cutout. Always go with the smallest dimension.
Depth: Measure from the front edge of the cutout to the back. Take two measurements: one closer to the right side, another closer to the left side. If there’s a difference, use the smaller dimension.
Measuring for cooktop height clearance
Cooktops are a great option for kitchen islands, but if you’re installing a cooktop against a wall or between cabinets, you’ll want to make sure you have enough clearance to do so. When measuring, you may need to make clearance considerations for cabinets, built-in microwaves and range hoods that may be above your cooking space. The installation requirements for your specific cooktop model may vary and your product literature should be your primary source of information.
Make sure to reference the installation instructions or product guides for your appliance to review the required clearances between the cooktop and cabinets, walls or other combustible materials. Here are some additional clearances you will need to consider:

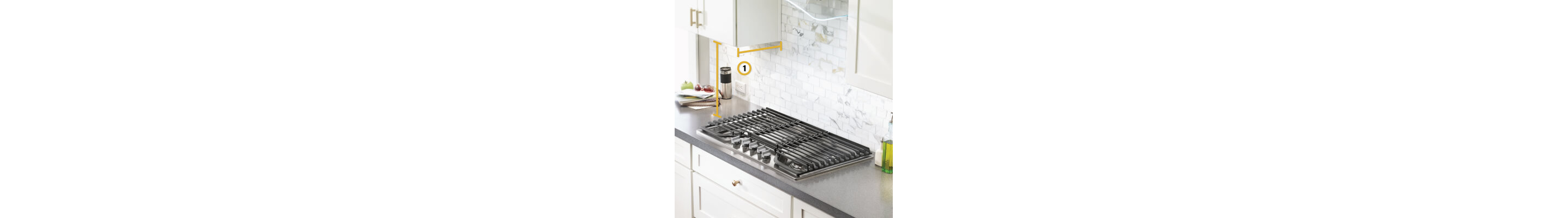

Step 1: Measure upper cabinet depth and height
Measure the size of the upper cabinets on either side of the cooktop. Consider both cabinet depth and the distance from the cabinets to the countertop. Exact clearance measurements vary depending on the make and model of your cooktop, so you should always refer to your product manual for model-specific information. Typically, however, cooktops require 30 inches above and 1-2 foot clearances on each side.
You can verify that your space has the proper clearance for your new cooktop by measuring the appliance and subtracting ½ to 1 inch on each side. This helps include the overhanging lip on your countertop and makes sure there is plenty of room for the burners.
Step 2: Measure the height above the cooktop surface
Check minimum clearances needed from the cooking surface to the bottom of cabinets or other combustible surfaces.
This will depend on whether or not you include a range hood or vent. If using, follow the hood or vent installation instructions for dimensional clearances above the cooking surface. Range hoods are typically installed 20-24 inches above electric cooktops and 24-30 inches above gas cooktops.
Step 3: Measure the distance between the cooktop and wall
The distance between the cooktop and any adjacent walls or other combustible materials may also require a minimum clearance.
The distance between your cooktop and the back wall should be between 3-10 inches. This varies depending on the make and model of your appliance, so be sure to consult your owner’s manual for model-specific installation requirements.
What else should I consider before buying a cooktop?
In addition to a range of sizes, cooktops are available with a variety of options and features to fit your needs:
Fuel type
You can find gas or electric cooktops in a range of sizes to suit your favorite cooking style. Check your existing setup, or the requirements to install a new one to choose the best option for your kitchen. If either one will work for your space, learn more about the differences between gas and electric cooking appliances to find the right fuel source for you. Once you know which fuel source is best for you, browse gas cooktops or electric cooktops from Whirlpool brand. Also, take a look at these induction cooktops or the full selection of cooktops.
Number and size of burners
The number and size of burners or heating elements are important considerations to help you choose a cooktop that fits your space and needs. A standard cooktop will usually feature 4 burners to fit a range of cookware. Space-efficient 2-burner options let you fit a cooktop just about anywhere.
For full family meals, 5-burner cooktops allow you to simmer, sauté and boil all at once. Whirlpool brand even offers 5-burner cooktops, with select models featuring a 2-in-1 Hinged Grate to Griddle that lets you enjoy more mealtime possibilities. Use the griddle for breakfast, then move it out of the way to use the grate for dinner.
Features and settings
Cooktops often come with many of the same features you’d find on a range stovetop. Electric cooktops featuring smooth glass or ceramic tops are often considered the easiest to clean.
If you’re looking for convenient cleanup but prefer cooking with gas, select Whirlpool® Cooktops feature EZ-2-Lift™ Hinged Cast-Iron Grates that provide instant access to the cooktop to quickly clean up splatters and spills. For extra flexibility, look for cooktops with features like the SpeedHeat™ Burner, which generates high heat so you can get dinner to the table fast.
